- Size: 1.38*0.85*1.98
- Place of Origin: Zhejiang Hangzhou
- Brand Name: jiequ
- Model Number: DL6-200
- Weight: 380.000 kg

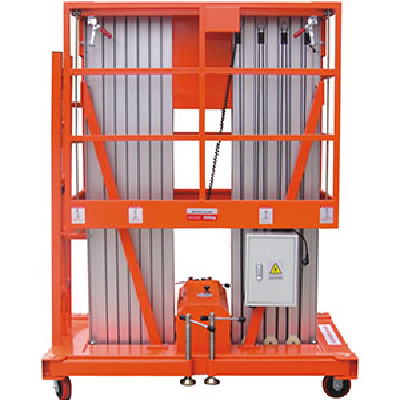

Mast aluminum alloy lift
1.Aluminum alloy mast hydraulic lift features nice-looking, light self weight, small volume, stable lifting and reliable performance. It is widely used in hotels, restaurants, stations, cinemas, exhibition halls etc. for maintenance, painting, decorating and cleaning.
2.According to different capacities, the aluminum alloy hydraulic lift can be divided into single mast type, double mast type, ternate mast type and multi-mast type.
Specification | DL6-200 | DL8-200 | DL10-200 | DL12-200 | DL14-200 |
Max. height(m) | 6 | 8 | 10 | 12 | 14 |
Max. working height(m) | 7.7 | 9.7 | 11.7 | 13.7 | 15.7 |
Max. load(Kg) | 200 | ||||
Voltage(V/Hz) | AC 220/50 DC 24/0.8 | ||||
Power(Kw) | 1.1 | ||||
Weight(Kg) | 380 | 480 | 610 | 650 | 710 |
Dimension(m) | 1.38*0.85*1.98 | 1.38*0.85*1.98 | 1.58*0.95*1.98 | 1.62*0.95*2.25 | 1.73*0.95*2.25 |
- Size: 1.38*0.85*1.98
- Place of Origin: Zhejiang Hangzhou
- Brand Name: jiequ
- Model Number: DL6-200
- Weight: 380.000 kg
Specification | DL6-200 | DL8-200 | DL10-200 | DL12-200 | DL14-200 |
Max. height(m) | 6 | 8 | 10 | 12 | 14 |
Max. working height(m) | 7.7 | 9.7 | 11.7 | 13.7 | 15.7 |
Max. load(Kg) | 200 | ||||
Voltage(V/Hz) | AC 220/50 DC 24/0.8 | ||||
Power(Kw) | 1.1 | ||||
Weight(Kg) | 380 | 480 | 610 | 650 | 710 |
Dimension(m) | 1.38*0.85*1.98 | 1.38*0.85*1.98 | 1.58*0.95*1.98 | 1.62*0.95*2.25 | 1.73*0.95*2.25 |
