- Place of Origin: Zhejiang China
- Brand Name: jiequ
- Model Number: ASE0608
- Weight: 1945.000 kg

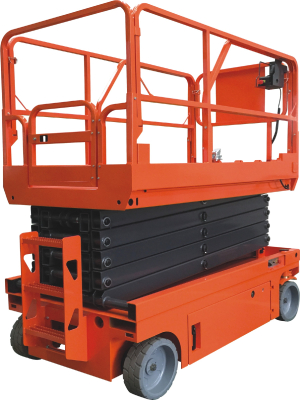

Feature of low noise is perfectly suitable for the noise-sensitive environments, such as office buildings, shopping malls, hotels, school, etc.
Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowded working conditions such as construction site, elevator, and narrow corridor. Lift-up, lift-down, turning, forward and backward movements can be exasperated by one person.
- Place of Origin: Zhejiang China
- Brand Name: jiequ
- Model Number: ASE0608
- Weight: 1945.000 kg
Specification | ASE0608 | ASE0810 | ASE1012 | ASE1214 | |
Max height m | 6 | 8 | 10 | 12 | |
Working height m | 8 | 10 | 12 | 14 | |
Horizontal extension m | 0.9 | ||||
Capacity kg | 380 | 450 | 320 | 320 | |
Load of extension part kg | 113 | ||||
Adapted ground degree % | 25 | ||||
Min turning radius m | 2.1 | 2.1 | 2.2 | 2.2 | |
Speed | Folding up km/s | 3.0 | |||
Rise km/s | 0.8 | ||||
Overall length m | 2.43 | 2.43 | 2.43 | 2.43 | |
Overall width m | 0.81 | 1.15 | 1.15 | 1.15 | |
Overall height m | 2.18 | 2.31 | 2.42 | 2.55 | |
Platform size m | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*1.12 | |
Min. distance to the ground m | 0.10 | ||||
Drive wheel size mm | Φ381*127 | ||||
Net weight kg | 1945 | 2175 | 2468 | 2830 | |
Lifting motor v/kw | 24/3.3 | ||||
Charger V/A | 24/25 | ||||
